In 2005, the Layer structure of SYSCAD was standardized and internationalized. These Layers are to be found in our SYSCAD.DWT template in the SYSCAD directory.
The layers in the template drawing are devided into three groups:
•Layers of the system block elements (profiles, gaskets, etc.) The profile blocks of the system suppliers offer a consistent layer structure and denomination. Thus, switching between the different profile systems is eased. If you want to change the representation of the system blocks, you should change the settings for the group 1 layers in your prototype.
•Layers for the drawing elements (Insulation, membranes, sheets, etc.) The layer names can be defined in the SYSCAD VARIABLE according to your liking. These layers must be defined in your prototype drawing as well. In our prototype the group 2 layers are defined as shown below.
•Layer fors the elements of the "generating section" (frame profiles and T/M profiles in the elevation, etc.) Those layer names cannot be changed. In case the layer does not exist in your template, SYSCAD automatically inserts the necessary layer with the color white. Group 3 layers should not be used for personal drawing elements. However, you may change settings like color / printability etc. according to your liking.
Group1 Layer
|
Meaning
|
Color
|
Line type
|
SYS_AL_CENT
|
Aluminum center line
|
yellow
|
STRICHPUNKT (DASHDOT)
|
SYS_AL_CONT
|
Aluminum contour
|
white
|
CONTINUOUS
|
SYS_AL_HATCH
|
Aluminum hatching
|
yellow
|
CONTINUOUS
|
SYS_AL_HIDD
|
Aluminum hidden lines
|
yellow
|
VERDECKT (HIDDEN)
|
SYS_AL_SOLID
|
Aluminum hatching with pattern "solid"
|
9 (grey)
|
CONTINUOUS
|
SYS_CN_CENT
|
Stainless Steel center line
|
yellow
|
STRICHPUNKT (DASHDOT)
|
SYS_CN_CONT
|
Stainless Steel contour
|
white
|
CONTINUOUS
|
SYS_CN_HATCH
|
Stainless Steel hatching
|
yellow
|
CONTINUOUS
|
SYS_EL_CONT
|
Additional visible edge in the profiles of the view.
|
yellow
|
CONTINUOUS
|
SYS_EL_HIDD
|
additional invisible edge in the profiles of the view.
|
yellow
|
VERDECKT (HIDDEN)
|
SYS_FI_CENT
|
Fittings center line
|
yellow
|
MITTE (CENTER)
|
SYS_FI_CONT
|
Fittings contour
|
cyan
|
CONTINUOUS
|
SYS_FI_HIDD
|
Fittings hidden lines
|
yellow
|
VERDECKT (HIDDEN)
|
SYS_FS_CONT
|
Fire protection contour
|
green
|
CONTINUOUS
|
SYS_FS_HATCH
|
Fire protection hatching
|
yellow
|
CONTINUOUS
|
SYS_FS_HIDD
|
Fire protection hidden lines
|
yellow
|
VERDECKT (HIDDEN)
|
SYS_GA_CONT
|
Gasket contour
|
green
|
CONTINUOUS
|
SYS_GA_HATCH
|
Gasket hatching
|
yellow
|
CONTINUOUS
|
SYS_IF_CONT
|
Insulating foam contour
|
yellow
|
CONTINUOUS
|
SYS_IF_HATCH
|
Insulating foam hatching
|
yellow
|
CONTINUOUS
|
SYS_IN_CONT
|
Insulation contour
|
yellow
|
CONTINUOUS
|
SYS_IN_HATCH
|
Insulation hatching
|
yellow
|
CONTINUOUS
|
SYS_PL_CONT
|
Plastic contour
|
yellow
|
CONTINUOUS
|
SYS_PL_HATCH
|
Plastic hatching
|
yellow
|
CONTINUOUS
|
SYS_SC_CENT
|
Screws center line
|
yellow
|
MITTE (CENTER)
|
SYS_SC_CONT
|
Screws contour
|
magenta
|
CONTINUOUS
|
SYS_SC_HEAD
|
Screws head
|
magenta
|
CONTINUOUS
|
SYS_SC_HIDD
|
Screws hidden lines
|
magenta
|
VERDECKT (HIDDEN)
|
SYS_SC_THREAD
|
Screws threads
|
magenta
|
CONTINUOUS
|
SYS_ST_CENT
|
Steel center line
|
yellow
|
MITTE (CENTER)
|
SYS_ST_CONT
|
Steel contour
|
white
|
CONTINUOUS
|
SYS_ST_HATCH
|
Steel hatching
|
yellow
|
CONTINUOUS
|
SYS.ST_HIDD
|
Steel hidden lines
|
yellow
|
VERDECKT (HIDDEN)
|
SYS_WO_CONT
|
Timber contour
|
white
|
CONTINUOUS
|
SYS_WO_HATCH
|
Timber hatching
|
yellow
|
CONTINUOUS
|
|
|
|
|
Group 2 Layer
|
Meaning
|
Color
|
Line type
|
ACHSEN
|
Layer axis labelling
|
yellow
|
CONTINUOUS
|
AFENSTER
|
Layer view window
|
white
|
CONTINUOUS
|
BEMASS
|
dimensioning
|
yellow
|
CONTINUOUS
|
BEMASS_ANSICHT
|
Example layer Dimensioning View
|
green
|
CONTINUOUS
|
BEMASS_SCHNITT
|
Example layer dimensioning section
|
yellow
|
CONTINUOUS
|
FOLIE
|
Membrane contour
|
cyan
|
CONTINUOUS
|
BLECH
|
Sheet metal contour
|
white
|
CONTINUOUS
|
DAEMM
|
Layer insulation
|
yellow
|
CONTINUOUS
|
DAEMM_HART
|
Layer hard insulation
|
yellow
|
CONTINUOUS
|
FUELLUNGSKREUZ
|
Layer block in the glass structure
|
red
|
CONTINUOUS
|
GESTR
|
Shaded line
|
yellow
|
VERDECKT (HIDDEN)
|
H_LINIE
|
subsidiary lines
|
green
|
CONTINUOUS
|
H_LINIE2
|
subsidiary lines
|
cyan
|
CONTINUOUS
|
H_LINIE3
|
subsidiary lines
|
magenta
|
CONTINUOUS
|
HILFSL
|
Fine visible edges not cut
|
yellow
|
CONTINUOUS
|
HILFSL_I
|
Layer opening symbol
|
yellow
|
VERDECKTX2 (HIDDENX2)
|
HILFSL_STRPKT
|
Tear-off lines in the sections
|
yellow
|
STRICHPUNKT2 (DASHDOT2)
|
KLOTZ
|
Layer block
|
cyan
|
CONTINUOUS
|
MITTE
|
Layer centre line
|
yellow
|
MITTE (CENTER)
|
NORMTEIL
|
Possible insertion layer for standard parts
|
white
|
CONTINUOUS
|
SCHRAUBE
|
Insert layer screw
|
magenta
|
CONTINUOUS
|
SCHRAFF
|
hatch layer
|
yellow
|
CONTINUOUS
|
STRPKT
|
dotted line
|
yellow
|
STRICHPUNKT (DASHDOT)
|
TEXT018
|
Text 0.18mm
|
magenta
|
CONTINUOUS
|
TEXT025
|
Text 0.25mm
|
yellow
|
CONTINUOUS
|
TEXT035
|
Text 0.35mm
|
cyan
|
CONTINUOUS
|
TEXT05
|
Text 0.50mm
|
white
|
CONTINUOUS
|
TEXT07
|
Text 0.70mm
|
red
|
CONTINUOUS
|
TEXT10
|
Text 1.00mm
|
blue
|
CONTINUOUS
|
UMRISS018
|
Line 0.18mm
|
magenta
|
CONTINUOUS
|
UMRISS025
|
Line 0.25mm
|
yellow
|
CONTINUOUS
|
UMRISS035
|
Line 0.35mm
|
cyan
|
CONTINUOUS
|
UMRISS05
|
Line 0.50mm
|
white
|
CONTINUOUS
|
UMRISS07
|
Line 0.70mm
|
red
|
CONTINUOUS
|
UMRISS10
|
Line 1.00mm
|
blue
|
CONTINUOUS
|
VERDECKT
|
Hidden lines
|
yellow
|
VERDECKT (HIDDEN)
|
VERDECKT_BLOCK
|
Hidden edges in blocks
|
yellow
|
VERDECKT (HIDDEN)
|
|
|
|
|
Group 3 Layer
|
Meaning
|
Color
|
Line type
|
BEZ_MASS
|
Reference line for program absolute dimension
|
red
|
CONTINUOUS
|
INFO_ANS
|
Layer view information (e.g. Glasifno in view)
|
magenta
|
CONTINUOUS
|
FUELLUNG
|
Glass contour in the sections
|
red
|
CONTINUOUS
|
GLAS
|
Layer glass (block)
|
green
|
CONTINUOUS
|
BSYMBOL
|
fitting symbol in the elevation
|
cyan
|
CONTINUOUS
|
FESTV_SYMBOL
|
Layer for the fixed glazing symbol
|
cyan
|
CONTINUOUS
|
TEXT
|
section name
|
white
|
CONTINUOUS
|
WHC_EEL_INFO
|
filling information for cut list
|
yellow
|
CONTINUOUS
|
WHC_EINSATZ
|
filling information
|
cyan
|
CONTINUOUS
|
WHC_FSPROSSE
|
T-Bar information
|
cyan
|
CONTINUOUS
|
WHC_GLAS
|
Glass contour
|
green
|
CONTINUOUS
|
WHC_MA
|
Wall connection info
|
grey 9
|
CONTINUOUS
|
WHC_RAHMEN
|
Frameworks
|
yellow
|
CONTINUOUS
|
WHC_SCHNITTL
|
Intersections
|
red
|
MITTE (CENTER)
|
WHC_SPROSSE
|
T/M-Informations
|
yellow
|
CONTINUOUS
|

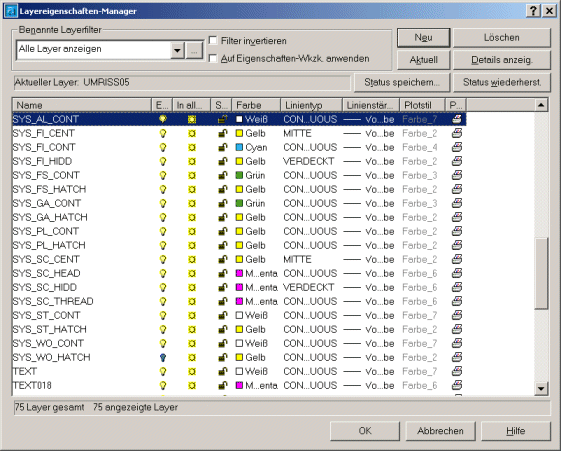

As from version 2000.09SR1 you will find the altered prototype SYSCAD.DWT for your accustomed colouring in your SYSCAD directory. Please copy the prototype SYSCAD.DWG into your own prototype or rename the SYSCAD.DWT in YOURNAME.DWT . Adjust your prototype drawing according to your wishes by opening the prototype via OPENING and changing the settings with the AutoCAD/BricsCAD LAYER command.
|
