Panel generator

 Attachment details > Panel generator

Toolbar: SYSCAD Attachment details -> kgl_paneel



Ribbon: SYSCAD Attachment -> Tools -> kgl_paneel

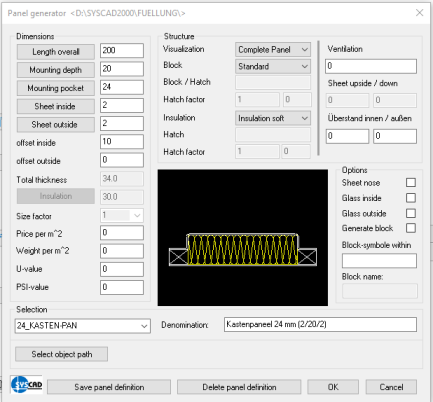

Generating of panels in a dialog box:

kap8_13

Use the buttons "LENGTH OVERALL", "MOUNTING DEPTH" etc. to get the dimensions directly from the drawing. The option "Generate block" can be used to change several equal panel objects.

The panels can be changed with a double click. (If the option "BLOCK" was used when creating or the group mode is active).

If the group mode is not active and the panel has not been created as a block, the function can be called up by double-clicking on the outermost polyline of the drawn panel.

The field "Selection" offers variants that have been saved already. Type in the name of the definition file here. "Save settings" saves your definition to this name. The panels are saved in the Fillings directory. Make sure the names does not contain any blanks, commas etc.



The command "join glazing"  join glazing is build for joining 2 disconnected panels or glasses.

 Gläser verbinden

Command:

choose objects: Click at Point 1



choose objects: Click at Point 2



choose objects: b_enter



The dialogbox of the panel generator appears.

With OK is the panel connected.





The command "align glazing" align glazing is build  for aligning 2 panels or glasses.

Gläser ausrichten

Command:

choose objects: Click at Point 1



choose objects: Click at Point 2



choose objects: b_enter



select objects to be aligned too: Choose the complete right section



choose objects: b_enter



Join glazing ? Yes



Glaslength min: <110.00>: z.B. 500



The dialogbox of the panel  generator appears.

With OK is the glass aligned and connected.








The command "stretch glazing" stretch glazing is build  for stretching panels or glasses in the original direction.

Gläser ausrichten

Command:

choose objects: Click at Point 1



choose objects: Click at Point 2





New Glaslength <500.0>:   700 b_enter





The function of the program in the same as working with the normal CAD-Command STRETCH.











The command "divide glazing" Gläser/Paneele auflösen is build for exploding panels or glasses and join them to a group. From the version 2012 and upwards, you're able to doubleclick panels or  glasses that were drawn as groups.

Draw "corner panels from a polylinie" Eckpaneel with min. 3 points.

With the command "Exchange panels" Exchange panel, glasses or panels can be exchanged in the section. Select the glasses or panels to be replaced and then the panel to be used from the panel generator.
