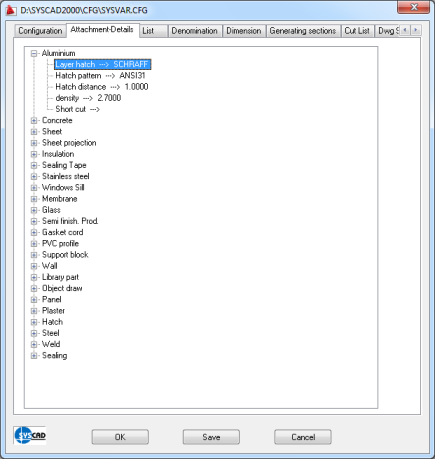

SYSCAD-Variable Attachment-Details
|
Naming
|
Default value
|
Additional explanation
|
from version
|
 Aluminium
|
Layer
|
SYS_AL_CONT
|
|
|
|
Layer hatch
|
SCHRAFF
|
|
|
|
Hatch pattern
|
ANSI31
|
|
|
|
Hatch distance
|
1.0000
|
|
|
|
Angle
|
0.0000
|
|
2015
|
|
density
|
2.7000
|
for the determination of sheet weights
|
|
|
Short cut
|
|
E.g. AL for labelling
|
|
|
Backgroundcolor
|
0
|
0 = none; or the colour number easily determined with KGL_GET_BACKGROUNDCOLOR
|
2020
|
|
|
|
|
|
Concrete
|
Layer
|
BETON
|
|
|
|
Layer hatch
|
SCHRAFF
|
|
|
|
Hatch pattern
|
ANSI33
|
|
|
|
Hatch distance
|
5.0000
|
|
|
|
Angle
|
0.0000
|
|
2014
|
|
Chamfer of concrete
|
0.0000
|
0 for no bevel
|
|
|
Thickness
|
80.0000
|
for object train
|
2012
|
|
Backgroundcolor
|
0
|
0 = none; or the colour number easily determined with KGL_GET_BACKGROUNDCOLOR
|
2020
|
|
|
|
|
|
Sheet
|
Layer
|
BLECH
|
|
|
|
Layer aluminium
|
ALUBLECH
|
|
|
|
Layer steel
|
STAHLBLECH
|
|
|
|
Layer high-grade steel
|
EDELSTAHL
|
|
|
|
Show own sheet material only
|
0
|
0 = No
|
2022
|
|
sheet thickness
|
2.0000
|
|
|
|
Radius to round off
|
2.0000
|
|
|
|
Layer view surface
|
GESTR
|
|
|
|
Distance view surface
|
2.0000
|
|
|
|
Facing contour, sharp-edged
|
1
|
|
|
|
Facing contour, front face
|
0
|
|
|
|
post decimal positions, ARX-Denom. - lenght
|
1
|
|
|
|
post decimal positions, ARX-Denom. - thickness
|
1
|
Caution: This is rounded up. 1.5 becomes 2 if this variable is set to 0.
|
|
|
calculation axx. neutral axis
|
0
|
Calculation with the correction factor K or according to the neutral fibre. Only affects the labelling, not the unwinding.
|
|
|
Draw hidden lines
|
1
|
Invisible edges in the sheet unfolding
|
2017
|
|
|
|
|
|
Sheet projection
|
Layer
|
UMRISS035
|
|
|
|
Draw hidden lines
|
1
|
|
|
|
Layer hidden lines
|
VERDECKT
|
|
|
|
draw character lines
|
1
|
|
|
|
Layer Character lines
|
UMRISS018
|
|
|
|
|
|
|
|
Insulation
|
Layer
|
DAEMM
|
Layer for soft insulation
|
|
|
Layer
|
DAEMM
|
Contour layer for soft insulation
|
2017
|
|
Insulation hard
|
DAEMM_HART
|
Layer for hard insulation
|
2012
|
|
Layer
|
DAEMM
|
Contour layer for hard insulation
|
2017
|
|
Factor height/width of the insulation
|
4.5000
|
|
|
|
Height of the insulation
|
999.0000
|
|
|
|
Contour outside insulation
|
1
|
|
|
|
Label thickness as defined
|
0
|
|
2022
|
|
|
|
|
|
Sealing tape
|
|
|
|
|
Sealing tape 1-5
|
Layer 1-5
|
DICHTBAND
|
|
2017
|
Sealing tape 1-5
|
Layer hatch 1-5
|
SCHRAFF
|
|
2017
|
Sealing tape 1-5
|
Hatch pattern 1-5
|
ANSI37
|
|
2017
|
Sealing tape 1-5
|
Hatch distance 1-5
|
0.8000
|
|
2017
|
Sealing tape 1-5
|
Angle 1-5
|
0.0000
|
|
2017
|
|
|
|
|
|
|
Width / height
|
2.0000
|
Applies as the default value for the sealing strip in the rectangle
|
|
|
orthogonal sealing tape
|
1
|
|
|
|
|
|
|
|
Stainless steel
|
Layer
|
SYS_CN_CONT
|
|
|
|
Layer hatch
|
SCHRAFF
|
|
|
|
Hatch pattern
|
STEEL
|
|
|
|
Hatch distance
|
1.0
|
|
|
|
Angle
|
0.0000
|
|
2015
|
|
density
|
7.83
|
for the determination of sheet metal weights
|
|
|
Short cut
|
|
e.g. NIRO for labelling
|
|
|
Backgroundcolor
|
0
|
0 = none; or the colour number easily determined with KGL_GET_BACKGROUNDCOLOR
|
2020
|
|
|
|
|
|
Window sill
|
Layer
|
FBANK
|
|
|
|
Layer hatch
|
SCHRAFF
|
|
|
|
Hatch pattern
|
ANSI32
|
|
|
|
Hatch distance
|
1.0000
|
|
|
|
Angle
|
0.0000
|
|
2014
|
|
Thickness
|
25.0000
|
for object train
|
2012
|
|
Backgroundcolor
|
0
|
0 = none; or the colour number easily determined with KGL_GET_BACKGROUNDCOLOR
|
2020
|
|
|
|
|
|
Membrane
|
|
|
|
|
Membrane 1
|
Layer
|
FOLIE
|
|
|
Membrane 1
|
Membrane thickness
|
2.0000
|
|
|
Membrane 1
|
Membrane radius
|
2.0000
|
|
|
Membrane 1
|
Line type
|
VERDECKT
|
|
|
Membrane 1
|
Line type factor
|
2.0000
|
|
|
Membrane 1
|
Membrane Name 1
|
|
|
|
|
|
|
|
|
Membrane 2-5
|
Layer 2-5
|
FOLIE_02
|
Variant 2-5 of the membrane
|
|
Membrane 2-5
|
Membrane thickness 2-5
|
3.0000
|
|
|
Membrane 2-5
|
Membrane radius 2-5
|
3.0000
|
|
|
Membrane 2-5
|
Line type 2-5
|
VERDECKT2
|
|
|
Membrane 2-5
|
Line type factor 2-5
|
2.0000 or 3.0000 etc.
|
Variant 2-5 of the membrane
|
|
Membrane 2-5
|
Membrane Name 2-5
|
|
Short name of the membrane in the dialogue box
|
2018
|
|
|
|
|
|
|
post decimal positions ARX-Denom. - length
|
1
|
|
|
|
post decimal positions ARX-Denom. - thickness
|
1
|
Caution: This is rounded up. 1.5 becomes 2 if this variable is set to 0.
|
|
|
|
|
|
|
Glass
|
Glasslength
|
50.0000
|
|
|
|
Layer glass
|
FUELLUNG
|
|
|
|
Distance glasshatch
|
1.0000
|
0 for none
|
|
|
Layer glasshatch
|
FUELLUNG
|
|
|
|
Hatch single glass
|
1
|
|
|
|
Layer cross in fillings
|
FUELLUNGSKREUZ
|
|
|
|
Blockname edge bonding
|
GLASVERBUND_
|
For example, the block GLASVERBUND_24 is inserted for glass size 24.
|
|
|
Glass bevel
|
1.0000
|
|
|
|
Layer membrane in laminated safety glass
|
GLASFOLIE
|
|
|
|
Thickn. membrane in laminated safety glass
|
0.2000
|
|
|
|
Insertlayer
|
GLAS
|
|
|
|
Generate block
|
1
|
If 1 or Yes, the glasses are created as a block and can be changed by double-clicking. If 0 or No, the panes can be changed using the Stretch command.
|
|
|
Denomination
|
0
|
0 = without text, 1 = text on the right, 2 = text on the left, 3 = text in the centre
|
2019
|
|
|
|
|
|
Semi finish. Prod.
|
Alternative Programm for semi-finisched profiles
|
0
|
This gives you semi-finished steel products that can be hatched but not intelligently labelled
|
|
|
Layer
|
PROFIL
|
|
|
|
Layer hatch
|
SCHRAFF
|
|
|
|
Hatch pattern
|
STEEL
|
|
|
|
Hatch distance
|
1.0000
|
|
|
|
Object layer middle
|
MITTE
|
|
|
|
|
|
|
|
Wood
|
Layer
|
SYS_WO_CONT
|
|
2015
|
|
Layer hatch
|
SYS_WO_HATCH
|
|
2015
|
|
Hatch pattern
|
ANSI32
|
|
2015
|
|
Hatch distance
|
1.0000
|
|
2015
|
|
Angle
|
0.0000
|
|
2015
|
|
Backgroundcolor
|
0
|
0 = none; or the colour number easily determined with KGL_GET_BACKGROUNDCOLOR
|
2020
|
|
|
|
|
|
Gasket cord
|
Layer
|
DICHTBAND
|
|
|
|
Layer hatch
|
SCHRAFF
|
|
|
|
Hatch pattern
|
ANSI32
|
|
|
|
Hatch distance
|
1.0000
|
|
|
|
Angle
|
0.0000
|
|
2015
|
|
|
|
|
|
PVC profile
|
Layer
|
KPROFIL
|
|
|
|
Layer hatch
|
SCHRAFF
|
|
|
|
Hatch pattern
|
ANSI37
|
|
|
|
Hatch distance
|
1.0000
|
|
|
|
Angle
|
0.0000
|
|
2015
|
|
Radius to round off
|
0.0000
|
|
|
|
Backgroundcolor
|
0
|
0 = none; or the colour number easily determined with KGL_GET_BACKGROUNDCOLOR
|
2020
|
|
|
|
|
|
Support block
|
Layer
|
KLOTZ
|
|
|
|
Rotate at insertion
|
1
|
|
|
Support block 1-8
|
Layer 1-8
|
KLOTZ
|
for your own block variants (5-8 with SYSCAD 2020)
|
2012/2020
|
Support block 1-8
|
Layer hatch 1-8
|
SCHRAFF
|
see above
|
2012/2020
|
Support block 1-8
|
Hatch pattern 1-8
|
ANSI31
|
see above
|
2012/2020
|
Support block 1-8
|
Hatch distance 1-8
|
5.0000
|
see above
|
2012/2020
|
Support block 1-8
|
Angle 1-8
|
0.0000
|
|
2014/2020
|
Support block 1-8
|
Alias 1-8
|
|
Display name in the dialogue box
|
2021
|
|
|
|
|
|
|
|
|
|
|
Wall
|
Layer
|
MAUER
|
|
|
|
Layer hatch
|
SCHRAFF
|
|
|
|
Hatch pattern
|
ANSI31
|
|
|
|
Hatch distance
|
5.0000
|
|
|
|
Angle
|
0.0000
|
|
2014
|
|
Thickness
|
100.000
|
for the object train
|
2012
|
|
Backgroundcolor
|
0
|
0 = none; or the colour number easily determined with KGL_GET_BACKGROUNDCOLOR
|
2020
|
|
|
|
|
|
Library part
|
Rotate at insertion
|
0
|
|
|
|
display ISO
|
0
|
if 0,DIN is displayed
|
2011
|
|
Length = 0
|
0
|
If 1, the length is not labelled
|
2013
|
|
not cover
|
0
|
if 1, then NO is always suggested in the CAD library
|
2011
|
|
my documents path
|
|
for own blocks
|
2012
|
|
default directory
|
|
Directory for the labelling settings
|
2012
|
|
Double-click accepts the default
|
0
|
The default for the next standard part is also adopted when double-clicking on an existing standard part
|
2021
|
|
Display variants text 1-5
|
|
|
2021
|
|
|
|
|
|
Wall object
|
Layer hidden lines
|
GESTR
|
|
2012
|
|
Prolongation of sub. lines
|
5.0000
|
|
2012
|
|
Layer tolerance line
|
GESTR
|
|
2020
|
|
Tolerance "+"
|
0.0000
|
|
2020
|
|
Tolerance "-"
|
5.0000
|
|
2020
|
|
|
|
|
|
Panel
|
Block name
|
PANEEL_
|
|
|
|
Insertlayer
|
PANEEL
|
|
|
|
Generate Block
|
1
|
|
|
|
Denomination
|
0
|
0 = without text, 1 = text on the right, 2 = text on the left, 3 = text in the centre
|
2019
|
|
|
|
|
|
Plaster
|
Layer
|
PUTZ
|
|
|
|
Layer hatch
|
SCHRAFF
|
|
|
|
Hatch pattern
|
AR-CONC
|
|
|
|
Hatch distance
|
0.1000
|
|
|
|
Angle
|
0.0000
|
|
2014
|
|
Thickness
|
10.0000
|
|
2012
|
|
Backgroundcolor
|
0
|
0 = none; or the colour number easily determined with KGL_GET_BACKGROUNDCOLOR
|
2020
|
|
|
|
|
|
Hatch
|
Layer Hatch
|
SCHRAFF
|
|
|
Hatch 1-8
|
Layer 1-8
|
PROFIL
|
|
|
Hatch 1-8
|
Layer hatch 1-8
|
SCHRAFF
|
|
|
Hatch 1-8
|
Hatch pattern 1-8
|
ANSI31
|
|
|
Hatch 1-8
|
Hatch distance 1-8
|
1.0000
|
|
|
Hatch 1-8
|
Angle 1-8
|
0.0000
|
|
|
Hatch 1-8
|
Thickness 1-8
|
50.0000
|
for the object train
|
2012
|
Hatch 1-8
|
Backgroundcolor 1-8
|
0
|
0 = none; or the colour number easily determined with KGL_GET_BACKGROUNDCOLOR
|
2020
|
Hatch 1-8
|
Alias 1-8
|
|
Display name in the dialogue box
|
2021
|
|
|
|
|
|
Steel
|
Layer
|
SYS_ST_CONT
|
|
|
|
Layer hatch
|
SCHRAFF
|
|
|
|
Hatch pattern
|
STEEL
|
|
|
|
Hatch distance
|
1.0000
|
|
|
|
Angle
|
0.0000
|
|
2015
|
|
density
|
7.8300
|
for the determination of sheet metal weights
|
|
|
Short cut
|
|
E.g. ST for labelling
|
|
|
Backgroundcolor
|
0
|
0 = none; or the colour number easily determined with KGL_GET_BACKGROUNDCOLOR
|
2020
|
|
|
|
|
|
Weld
|
Layer
|
SCHWEISSNAHT
|
|
|
|
Weld with
|
3.0000
|
|
|
|
Distance factor
|
0.5000
|
|
|
|
Bulge factor
|
0.2500
|
|
|
|
Layer hatch
|
SCHWEISSNAHT
|
|
|
|
dimensioning style Welding Symbol
|
SCHNITT1_5
|
|
|
|
Layer Dimensioning Welding Symbol
|
BEMASS
|
|
|
|
Line type reference line
|
VERDECKT
|
|
2016
|
|
|
|
|
|
Sealing
|
|
|
|
|
Sealing-5
|
Layer 1-5
|
SILIKON
|
|
2017
|
Sealing-5
|
Layer hatch 1-5
|
SCHRAFF
|
|
2017
|
Sealing-5
|
Hatch pattern 1-5
|
DOTS / 2-5 ANSI31
|
|
2017
|
Sealing-5
|
Hatch distance 1-5
|
0.8000 / 2-5 1.0000
|
|
2017
|
Sealing-5
|
Angle 1-5
|
0.0000
|
|
2017
|
|
|
|
|
|
|
Width / height
|
1.0000
|
Applies as default value for sealing New
|
|
|
orthogonal sealing
|
1
|
Behaviour as up to version 2000.13
|
|
|
|
|
|
|
to apply the settings to the current drawing. Use
to exit the dialogue box without the changes you have made taking effect. With
your changes are saved in the
