Set properties

 Attachment details > Set properties



Toolbar: SYSCAD Attachment details -> SYSFLY-SYSCAD-Objects -> Eigenschaften setzen



Ribbon: SYSCAD Attachment -> Change -> Eigenschaften setzen







Use this command to assign user-specific properties to the standard parts or other SYSCAD objects. These properties can be evaluatedwith the SYSCAD TABLE or ARX labelling .

From version SYSCAD 2022, the properties are available directly in the respective object dialogue boxes. The properties therefore no longer need to be set externally.



The desired properties of the items can be defined by the user. Three different value lists can be entered.



Start the command: "Set properties" Set properties and select an object, e.g. a slide.



The following dialogue opens:



Anfragen_Folie



•You can define up to 3 of your own requests.

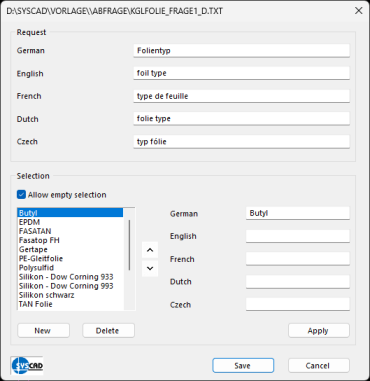

•Clicking on "..." takes you to the "Manage properties" dialogue:



eigenschaften_verwalten





•In this dialogue, fill in the request (e.g. foil type) according to your requirements.



•Next, enter the desired selection options.



•To do this, select "New" and fill in the selection in the desired languages.



•Click "Apply" to enter your selection in the list on the left-hand side of the dialogue.



•Click "Save" to save your query



Leere_Auswahl



Leere_Auswahl_01

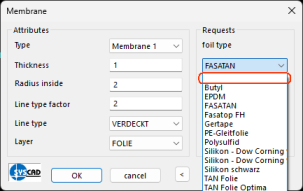

•If you tick "Allow empty selection":









•Will an empty selection be possible for your request in the "Object dialogue".







Folie_abfrage



•The slide dialogue with your queries.





Example for standard parts:

dlg_normteile_frage_material





































































The labelling can output the assigned properties as parameters %%w1 / %%w2 / %%w3.

normteile_material_frage
