Insulation

 Attachment details > Insulation

Toolbar: SYSCAD Attachment details -> daem_16

Settings and specifications under: SYSCAD-Variable / Attachment-Details / Insulation

Ribbon: SYSCAD Attachment -> Insulation -> daem_16







Generates loops to represent the insulation (polyline)

By defining two points, the insulation is fitted into a rectangle. If you confirm the program inquiry with b_enter, the insulation is defined by polygon. The first two points determine the alignment of the insulation.

(The AutoCAD variables SPLINSEGS can be used to define the radiuses. Note: The bigger the value, the higher is the storage demand of the drawing.)

kap8_6

The program for hard insulations works similar: Toolbar SYSCAD Attachment details: daem1_16

The ratio of height to width of the loops can be defined with SYSCAD-Variable / Attachment-Details / Insulation. The value needs to be > 2 .

The parameters of the insulation can be changed by double-click.

Insulation

If you right-click and hold on a selected insulation, these options appear in the following context menu:





insulation-contextmenue





The programm insulation soft circular kgl_daem_rund_weich and insulations hard circular kgl_daem_rund_hart creates normal polylines.



beispiel-runde-daemmung









Command:

center point or <Return> for select circle :

Radius 1 : 100

Radius 2  or <ENTER> for typing : 300







The programm insulation soft arch kgl_daem_bogen_weich and insulations hard arch kgl_daem_bogen_hart creates normal polylines



beispiel-bogen-daemmung





Befehl:

First point or <Return> for select arch : P1

Second point : P2

third point P3

Radius 2  or <ENTER> for typing : 400









Further commands for insulation:



The "Insert point" command Insert point is used to insert additional definition points. The "Delete point" command Delete point deletes definition points in the selection window.



"Insert space in insulation" Island in insulation Creates insulation within the drawn insulation, e.g. for labelling.



"Delete space in insulation" Delete island in insulation Deletes the island from the insulation.

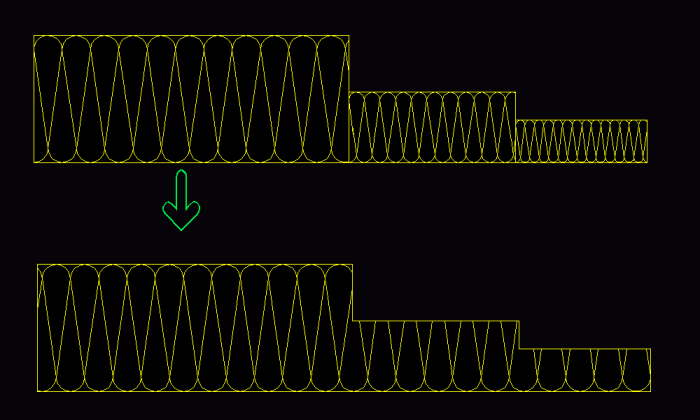

"Connect insulation" kgl_connect_16 allows you to connect 2 or more insulations that are adjacent to each other in the drawing.



Example:



daemm_verbinden
