Define queries SYSCAD objects

Customization > Define queries SYSCAD objects

Ribbon: SYSCAD-20XX -> Config -> FLYOUT-Config -> Abfragen SYSCAD Objekte definieren



Alternative: Ribbon:: SYSCAD Attachment -> library part -> Set properties -






Command "Define queries SYSCAD objects " Define queries SYSCAD objects has the same functionality as the "Set properties" command as of version SYSCAD 2025 Set properties



Up to and including version 2024:

Command: "Define SYSCAD object queries". Define SYSCAD object queries Lets you define up to 3 own queries for SYSCAD objects.

(Possible for: foil, insulation, sheet, block, standard parts and own standard parts).



Start with the command Define SYSCAD object queries and click on a SYSCAD object in your drawing, e.g. an insulation.

This dialogue opens:

oeffnekonfigdateien

Select a possible query (1-3) and define it according to the logic seen here.

konfigdefinieren

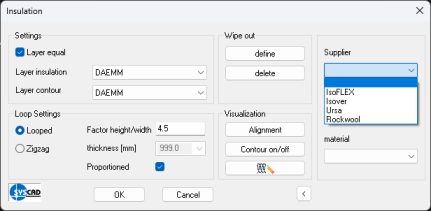

Here we see the dialogue box Insulation with our own query Supplier:

abfragebsp





Command: "Set properties" Set properties Allows you to define up to 3 custom queries for SYSCAD objects.

(Possible for: foil, insulation, sheet metal, block, standard parts and own standard parts)

Start with the command Set properties and click on a SYSCAD object in your drawing, e.g. a membrane.

This dialogue opens:



Anfragen_Folie



Click on "..." to access the relevant query file.



You can define up to 3 of your own queries.

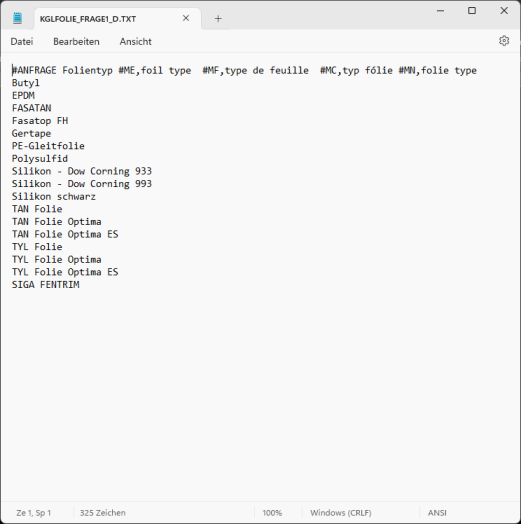

Here is an example of a query:

Abfragefolie



Dialogue slide with 3 own queries:

Folie_abfrage
