Drawing layouts

Top  Previous  Next

Toolbar: SYSCAD Programs -> svar_16



Ribbon: SYSCAD 20XX -> SYSCAD -> svar_16







d_sv3

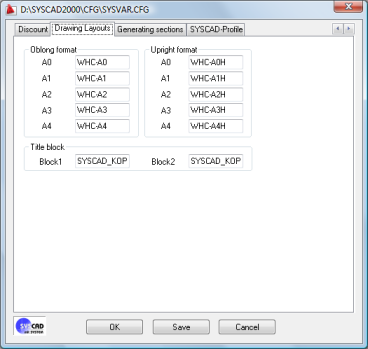

In the dialog box you can define which block applies to the drawing frame of the respective format or to the title block.

Press b_ok to accept the settings for the current drawing. Leave the dialog box with b_esc to discard alterations. b_save your alterations  to the configuration file of SYSCAD®. When starting SYSCAD® for the next time the settings will still be active.
