Toolbar: SYSCAD Attachment details ->
|
|
Ribbon: SYSCAD Attachment -> Library part ->
|
|
|
|

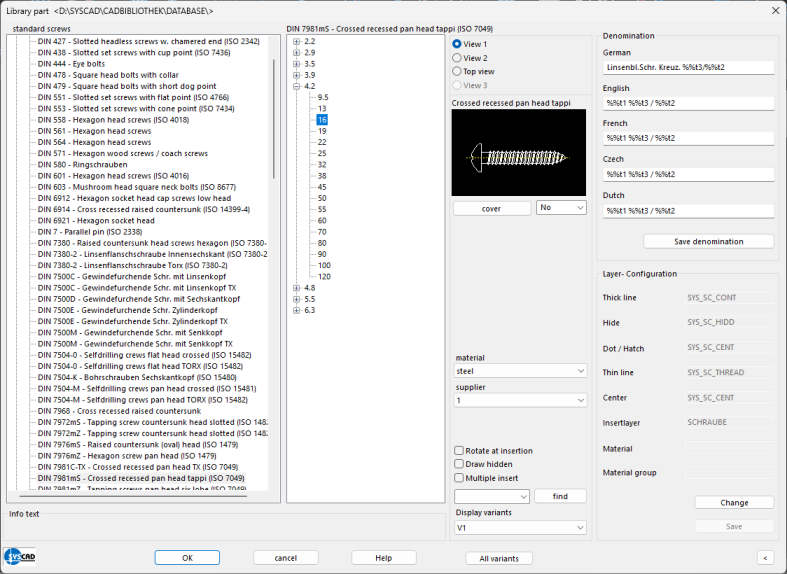

Automatic generation of standard parts and purchased parts.
Among others screws, nuts, rivets, steel and aluminum semi-finished products are integrated in the library. There are about 100,000 variations available.
The elements are inserted as blocks and can be changed per double-click or with the command  .
Please inform the SYSCAD TEAM in case of missing dimensions.

The short texts and layers are adjustable. The parameters %% t1 -%% t4 represent the data base texts. A line break can be defined using the parameter \P .
%%t1 = data base text (e.g. oval head tapping screw cross recessed head)
%%t2 = size / dimension (e.g. 3.9x25)
%%t3 = standard DIN
%%t4 = standard ISO
%%t5 = part number / block name
%%t6 = quantity
%%t7 = outer surface
%%t8 = price
%%t9 = supplier (e.g. Würth)
%%a1 = Material
%%a2 = Materialgroup
The parameters %%t5 to %%t8 can only be used in combination with data from the dialog box "Additional parts".
If you alter a denomination the current denomination of the respective object is not updated. To do so, click onto the denomination text, open the context menu via a right mouse click and select the commend UPDATE TEXT.
SEARCH searches the data base texts of the suppliers and displays the respective results. SYSCAD remembers the last 20 results.
SAVE CONFIGURATION generates a copy of the data base. You may import this copy after a SYSCAD update to keep your personal settings of short texts.
The layer settings can be modified for a single layer or a set of layers (e.g. all screws).
When setting the "Insertion layer" you can hide the standard part block with freezing the layer used for the block. In case this variable is empty the current layer is used for insertions.
Use the command  to hide or show variants or standard parts.
|
With a double-click on the light bulb you can deactivate either the entire variant or just a subentry or a particular standard part.
|
Prefered variants could be marked with bold text. Use the command "mark prefered variants"  for that.
|
With a double-click on the light bulb you can mark your prefered variants.
|
Your own blocks:
You could use your own blocks in the part library. The blocks should be available as DWG-files. Define the path for the blocks in the SYSCAD - Variable / Attachment-Details / Library Part and "my document path". Sub-folders could be used to organize your library. Up to 4 sub-folders are possible.
Favorites

Use this to save your favorites with the button .
With the adjustable jump addresses you define different preferred standard part categories which can be jumped to directly. To do this, select the command Save settings and click on the desired standard part.
The request in the text screen is:
Command:
Select standard part You click on an already inserted standard part whose category you want to have as jump address.
<Standard screws / XXX XXX > was saved
Save standard parts as favorites
|
