Fixed light

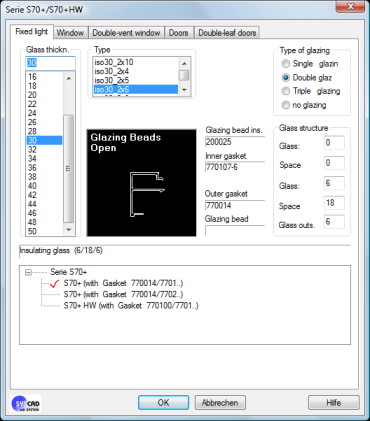

Select the glass thickness from the list or enter the value into the field "Glass thickness". Select the type of glass. Confirm with to draw the filling.

The glass thickness is stored as a variable, e.g. to < 24 >, and is considered as a default value for the following fields.

End filling < fixed light >

Glass thickness < 24 >

Define first corner (bottom left)

or select point in closed contour

When displaying the menu line, the mode "fixed light" can be quit by entering "E" or or the "Glass thickness" can be defined again.

You can change the type of glazing within a profile system by means of a double-click.

Please note: The glass thicknesses shown are nominal dimensions from the suppliers' glazing tables.When selecting the glass thickness, the glass and profile tolerances must be taken into account. Glass foils are not taken into account when determining the glass thickness.
