Color assignment for fillings

Generating sections > Wall connection / Add-on package > Color assignment for fillings

Toolbar: SYSCAD GENERATING SECTIONS -> SYSFLY - Wall Connection ->
Ribbon: SYSCAD Gener. Sections -> Wall -> FLYOUT - Wall Connection ->

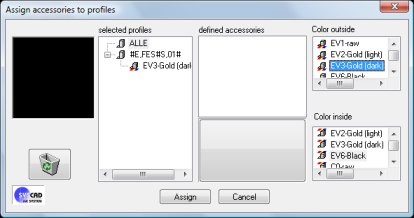

Select the filling by mouse click and assign the color to the corresponding filling in the following dialog box.

The selected fillings and assigned colors are printed in the cut list.

With fixed lights the selected color is assigned to the glazing beads only. With other glazing vents and glazing beads are colored.

Assign trimmings / filling parts lists:

To do this, drag the text SPECIAL FITTINGS / SONDERBESCHLAG to the desired filling. The dialog of the special fittings dialog for defining your own fittings and trimmings appears. Here you can define your special filling.
